TL Spectrum Analyser
Portable device for detecting the effects of electronic warfare and analysing the radio frequency spectrum in specified ranges
frequency range
360–5800 MHz
Battery
1500 mAh
Autonomy
Up to 24 hours
Charging
USB Type-C
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE
360–560 MHz, 720–1020 MHz, 2100–2700 MHz, 4900-5800 MHz
Power supply
rechargeable battery 1500 mA·h
AUTONOMY OF OPERATION
up to 24 hours
RADIUS OF ACTION
up to 5 m
DISPLAY
display of information about the spectrum
NAVIGATION BUTTONS
2 pcs (switching between screens)
SIZE
63х40х23 mm
Created to see the invisible

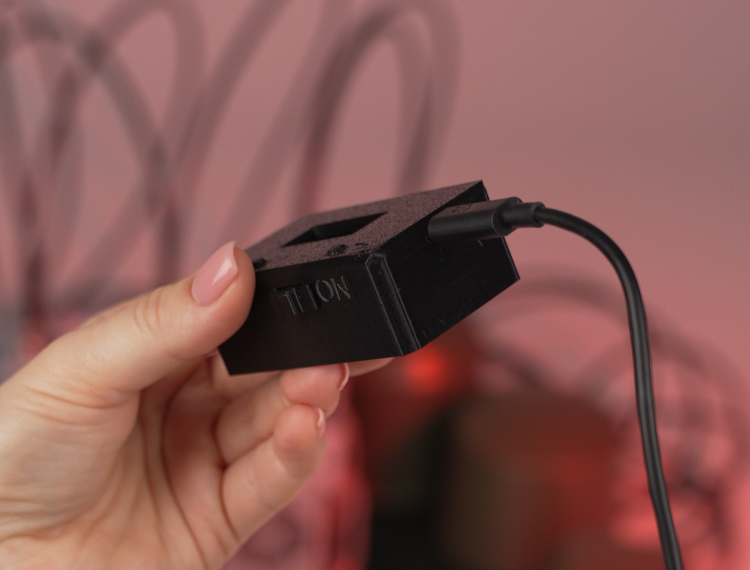

Compact size. Convenient to use in all conditions.

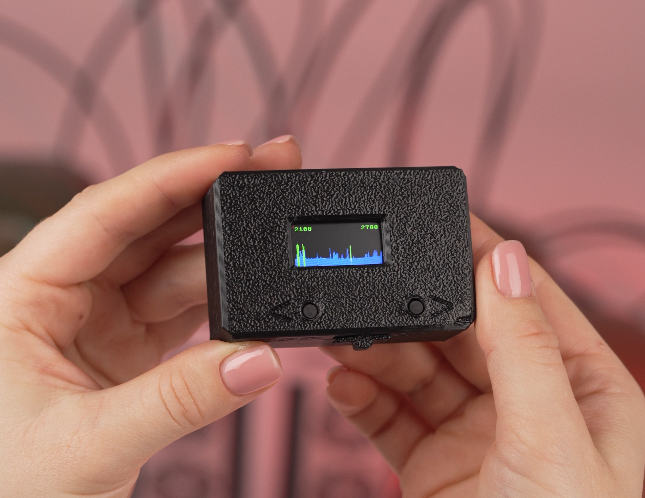

Obtain spectrum information in seconds. Quickly switch between ranges.

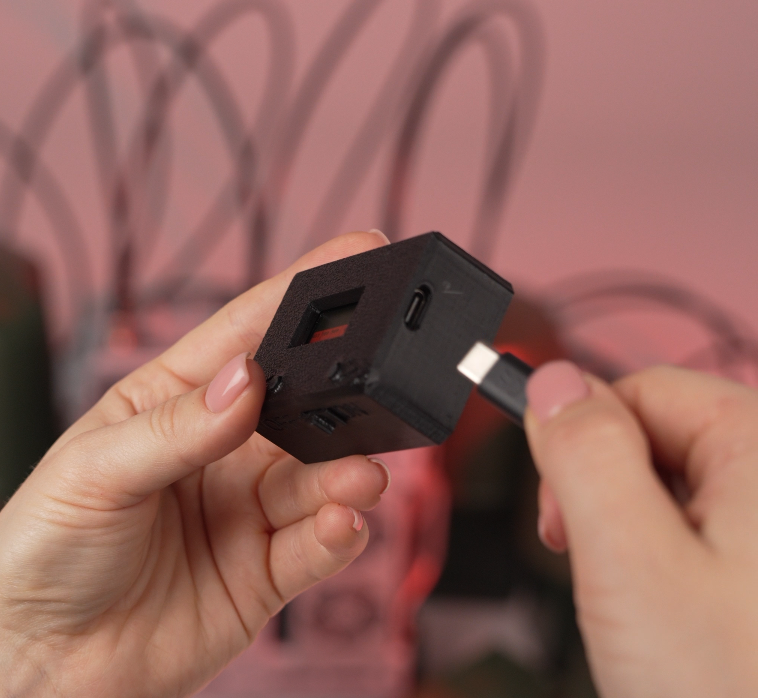

Up to 24 hours of battery life. Charges from any USB Type-C port
